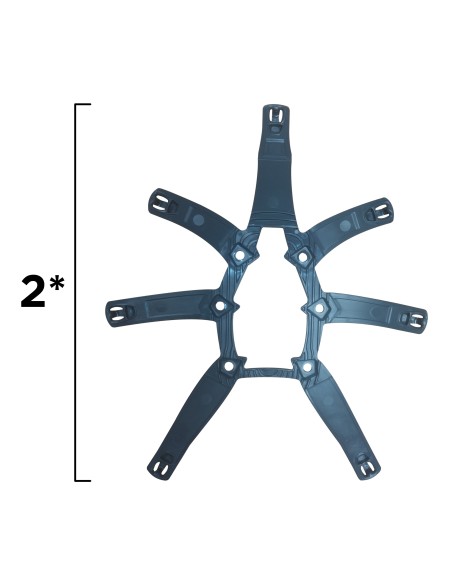

Kit of one pair of NORDEE front straps

The kit replaces the front strap for one pair of EVVO NORDEE snowshoes.
The straps are identical for both feet.

The straps are secured using crampon screws and 2 front claws.

Do it yourself! Replace the front straps yourself:

1. Unscrew the 6 crampon screws using a T25 bit (not provided)

2. Remove the two front claws and two lower claws with a 6 mm hex bit (not provided)

3. Remove the lacing to free the old straps

4. Insert the new front strap into the front deck

5. Clip the front crampon onto the front deck

6. Screw in the new straps with the Icespike screws at 2.5 N·m using a T25 bit (not provided)

7. Tighten the front and lower claws to 1 N·m using a 6 mm hex bit (not provided)

8. Pass the lace through the eyelets and Fidlock winches up to the heel deck. The Fidlock winches are positioned on the marks of each lace strand

9. Tie the two lace strands under the heel deck with a double fisherman’s knot (or equivalent), and you're done!

A tutorial is available on our YouTube channel. (Insert link here)

EVVO Loop: Return your old parts to EVVO — we will recycle them into new snowshoes.

EVVO is highly committed to the environment. Our products are 100% repairable and recyclable.
Please dispose of old plastic parts in plastic bins and screws in metal bins.

Your strap kit was entirely designed and manufactured in France.
